1GE WAN LAN 2 GE Gigabit Ports AP Access Point AC1200 Dual Band Wireless Wifi Mesh Router
- Dual-band concurrent Wireless Access Point compatible with IEEE802.11a/b/g/n/ac
- 16MByte Flash and 128Mbyte RAM
- 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously
- Smart Mesh networking and IEEE802.11K/V/R
- Supports multiple devices extension for wide WiFi coverage
- Wireless roaming helps users auto switch to stronger signal source
- Next-GEN MU-MIMO technology improves user experience comprehensively
- Intelligent Beamforming delivers highly targeted and efficient WiFi connection
- Full gigabit WAN and LAN ensures high speed Internet access and wired speed
- Supports DHCP, Static IP and PPPoE broadband functions
- QoS: Bandwidth Control based on IP address
- Support Easy Mesh protocol
- Supports Mobile APP
- Support TR069
Detailed parameters
- Wireless Standards: IEEE802.11a/n/ac@5GHz, IEEE802.11b/g/n@2.4GHz
- Signal Rate: 5GHz: Up to 867Mbps, 2.4GHz: Up to 300Mbps
- Operation Frequency: 2.4GHz and 5GHz
- Basic Features: SSID Broadcast, Support MU-MIMO
- Wireless Security: WPA2-PSK(default)
- Wifi Speed: 5G 866Mbps + 2.4G 300Mbps
- Wireless roaming: Comply with IEEE802.11v/r
- Ethernet Standards: IEEE802.3, IEEE802.3u

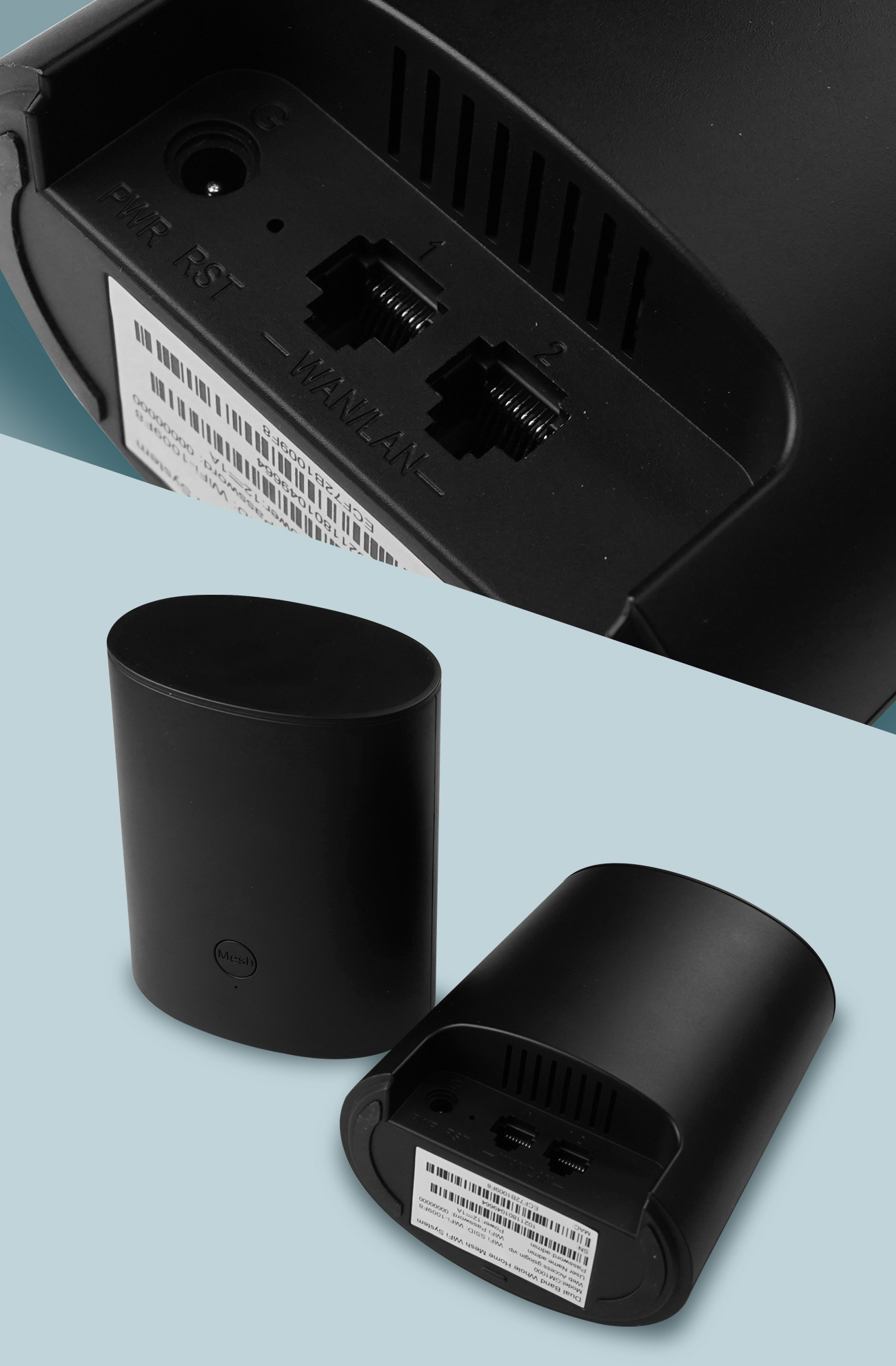

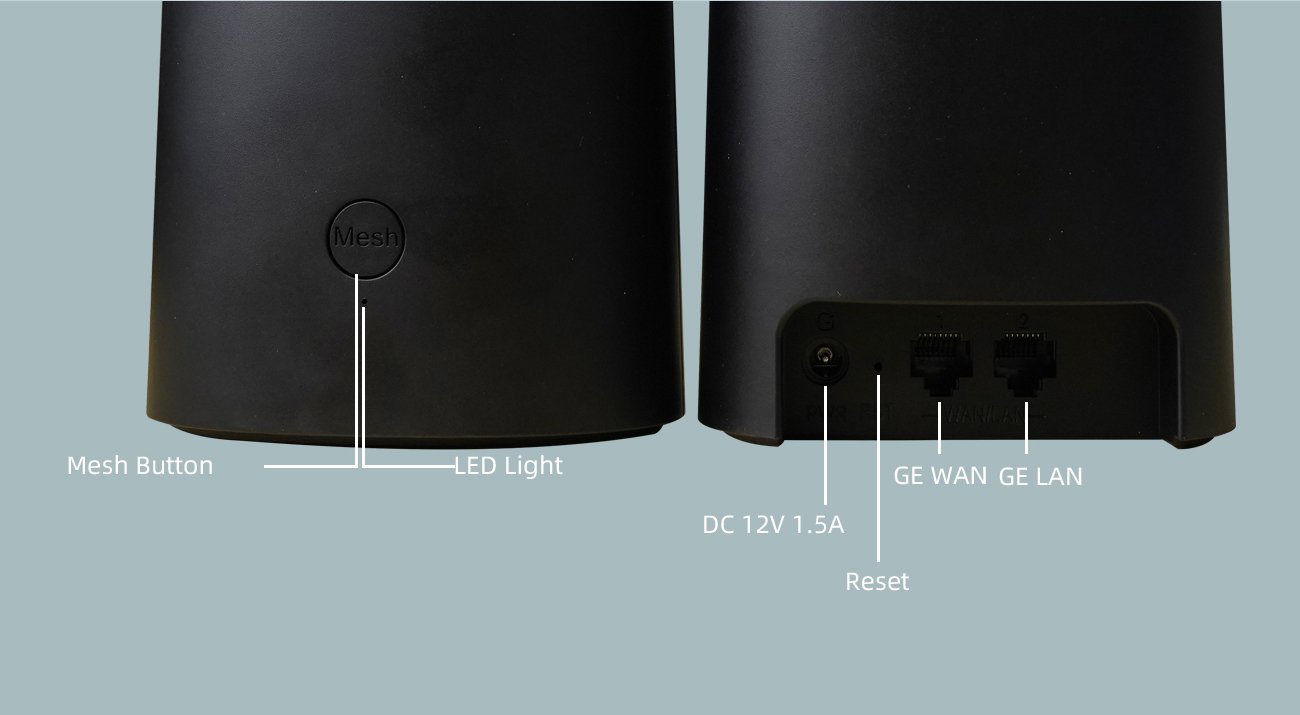

- Interface: 1 Gigabit Ethernet WAN port, 1 Gigabit Ethernet LAN port
- Antenna: 4 internal antennas
- Button: 1 Mesh button
- Input：100-240V—50/60Hz, 0.6A
- Output：DC 12V==1A
- Internet Connection Type: Dynamic IP/Static IP/PPPoE
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Quality of Service: WMM, Bandwidth Control
- Port Forwarding: Virtual Server, UPnP
- VPN Pass-Through: PPTP, L2TP, IPSec
- Access Control: Parental Control, Guest Network, Reset to factory settings
- Firewall Security: Forbid UDP flood attack, Forbid TCP flood attack, Forbid ICMP flood attack
- Internet Protocol: IPv4 and IPv6
- Setup Requirements: Supports Web UI, TR069
- Operating Temperature: 0°C~40°C (32°F~104°F)
Package Contents:
- 2*GM1000
- 2*Power Adapter
- 1*Quick Install Guide
- 1*Gigabit Ethernet Cable
